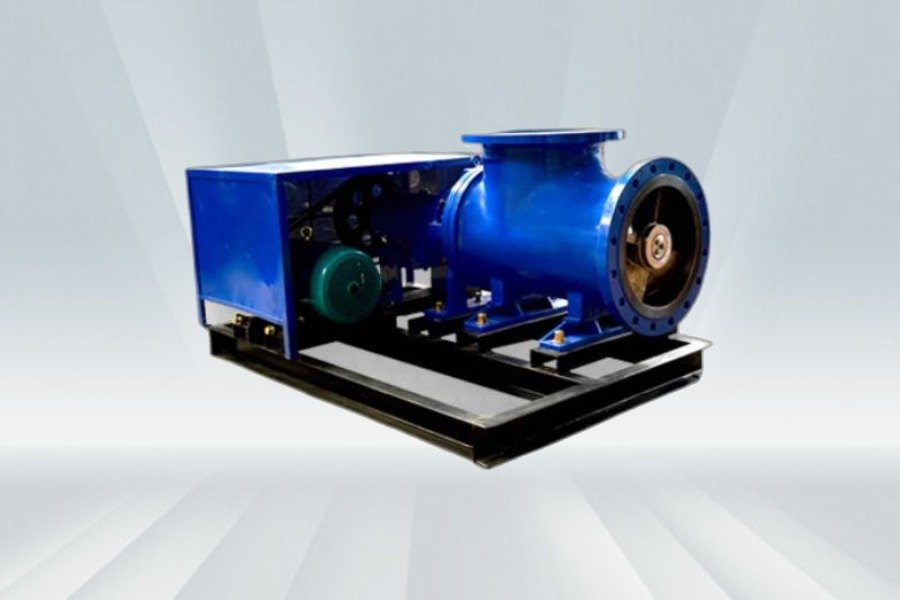

High Flow Agitator

High Flow Agitator

Applications :

The High Flow Agitators unmatched industry for high volume / Low head pumping requirements, especially when corrosive and abrasive solutions are involved . Mainly used in the following applications.

Agitation in digester for bio gas plant.

Evaporator and Crystallizer Circulation.

Phosphate, Soda Ash and Sodium Chloride Processing.

Sewage digester.

Raw water pumping, Flood control.

Black Liquid Evaporator, Chlorine dioxide generators.

Agitators.


Design :

High Flow Agitators generates flow by the thrust of lift action of rotating axial vanes of the propeller. The pump has an elbow (Casing) that directs the flow through suction and out the discharge end of the pump. It can be use top or end suction configuration depending upon need and flange dimensions. Bolt circle and hole comply with ANSI B16.5 150#. The back pull out design allows for easy maintenance and repairs as the rotation elements maybe removed without disturbing the pipe work.


Available Model :
Nature of Business Manufacturer
High Flow Agitator Model HFA-6 to HFA-24 (DN 150 to 600)
Flow Range 100 m3/hr to 5500 m3/hr
Head Range up to 9 meter
Maximum working Pressure 10 Bar
Temperature Up to 250ยบ C
